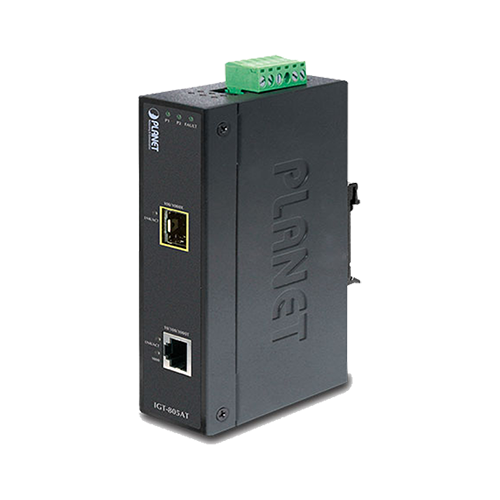

IGT-805AT

מוצר קודם | מוצר הבא
תיאור מוצר
Industrial 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter (-40~75 degrees C)

Physical Port
  • 1-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
  • 1 SFP interface, 100/1000BASE-X dual mode (auto detection)
Layer 2 Features
  • IEEE 802.3 / 802.3u / 802.3ab / 802.3z Ethernet standard compliant
  • Supports auto-negotiation and 10/100Mbps half / full duplex and 1000Mbps full duplex mode
  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • 9K jumbo frame size support
  • LFP function support
  • Automatic address learning and address aging
Industrial Case / Installation
  • Slim-type IP30 metal case
  • DIN rail and wall-mount design
  • Redundant power design
  • - 12 to 48V DC, redundant power with polarity reverse protect function
  • - AC 24V power adapter acceptable
  • Supports EFT protection for 6000 VDC for power line
  • Supports 6000 VDC Ethernet ESD protection
  • -40 to 75 degrees C operating temperature

Specification
